Radium Injector Seats for Mazda Top Feed Fuel Rails — Parts & Options

Parts are sold separately. Select the exact part number below. Each selection adds only that part to your cart; add other required components separately. Photos and application details may show a complete system or optional accessories.

Available part numbers

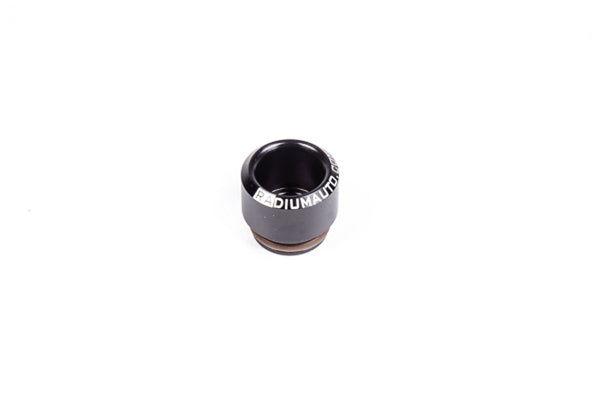

• 20-0444 Mazda Secondary Injector Seat, 16mm — Selection

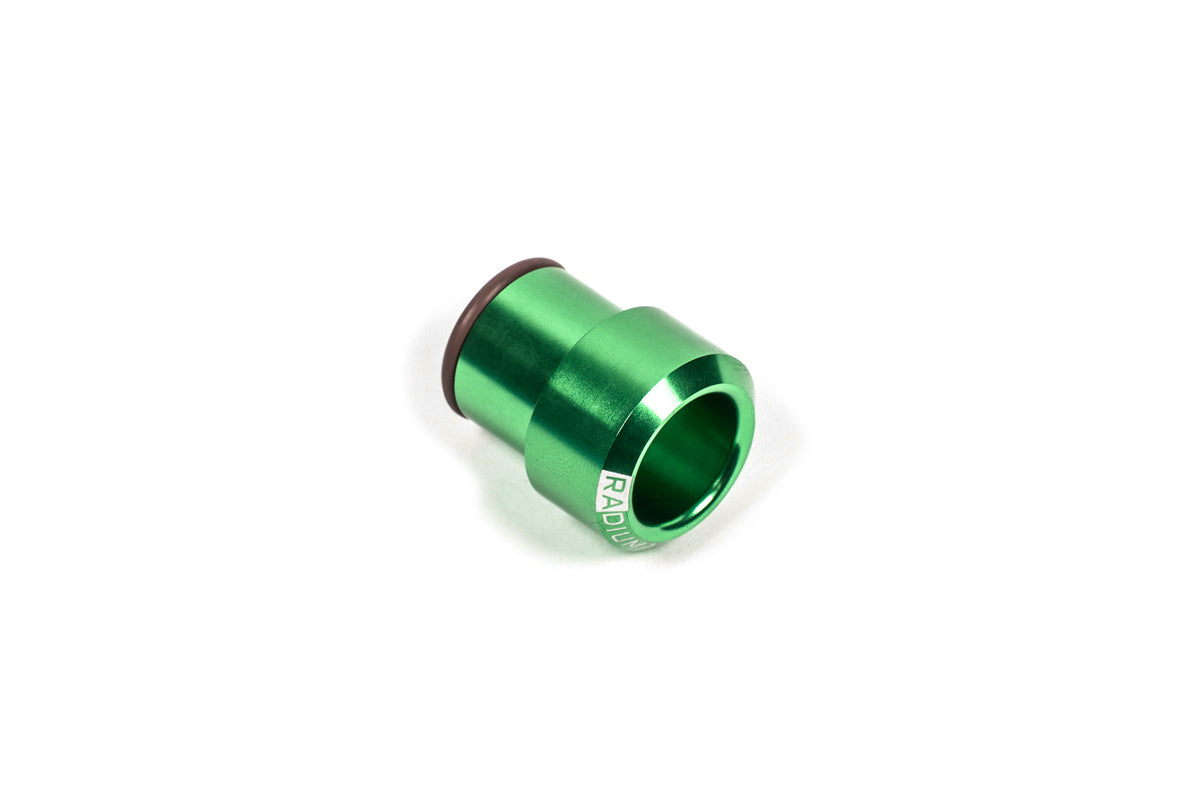

• 20-1044 Mazda Primary Injector Seat, 16mm — Selection
• 18-0043-06 O-Ring 5-Pack 6AN FKM — Replacement O-Rings

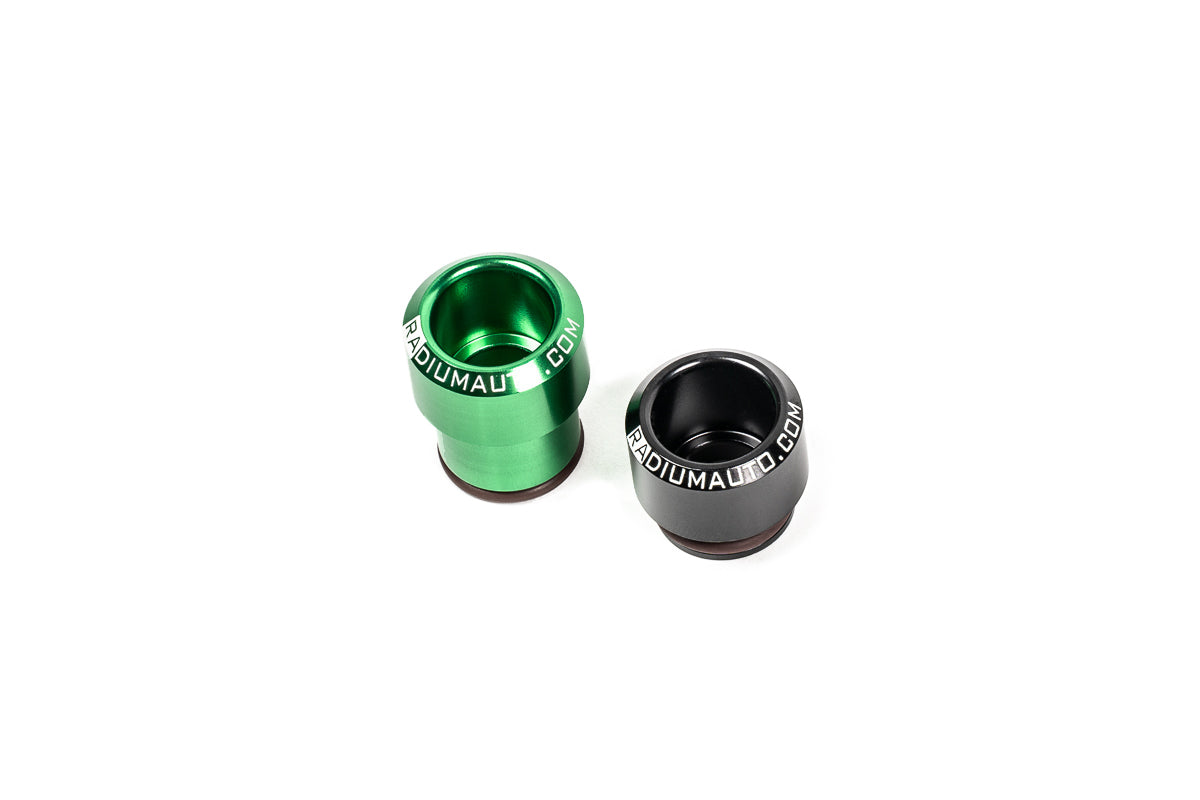

These are the same machined aluminum injector seats used in Radium Engineering fuel rails for Mazda/Eunos Cosmo and RX-7 rotary engines. The green injector seats are used in the irons (primary location) and the black injector seats are used in the intake manifold (secondary location). They are both required when converting the OEM 16mm injector seat's counterbore to 14mm which is more common with popular injector lower O-rings. They simply "pop" into the OEM injectors bore. They were designed specifically to be compatible with or without the OEM fuel injector diffusers installed. They seal to the machined injector counterbore using the included FKM O-ring.

NOTES

• The taller primary injector seats extend the O-rings past the air assist holes in the irons
• Most aftermarket lower intake manifolds are already machined with 14mm secondary injector ports



SOLD INDIVIDUALLY

• 13B-RE requires 4 total (2 primary+2 secondary)
• 13B-REW requires 4 total (2 primary+2 secondary)
• 20B-REW requires 6 total (3 primary+3 secondary)
