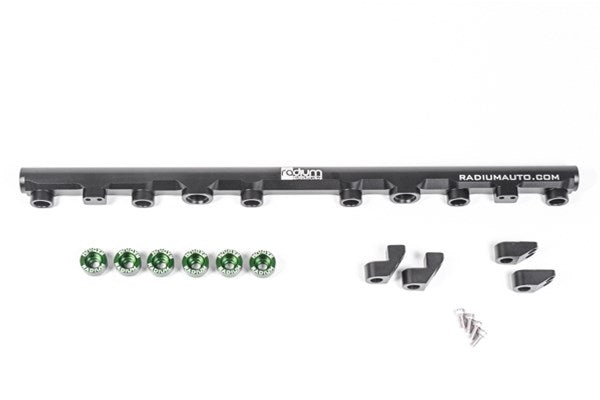

Radium Fuel Rail, Top Feed Conversion, Toyota 2JZ-GTE

Available part numbers

• 20-0215 Fuel Rail Top Feed Conversion Toyota 2JZ-GTE

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from a custom 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

The fuel rail ports are tapped for 8AN ORB.

• 8AN ORB Adapter Fittings can be found HERE
• 8AN ORB Direct Mount Regulators can be found HERE
• 8AN ORB Fuel Pulse Dampers can be found HERE
• Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

To reuse the OEM fuel pressure regulator, select the 20-0301. If securing to the front port, modification to the Traction Control TPS sensor is required when using the tall spacers. Check for firewall clearance if mounting on the rear port.

To reuse the factory fuel feed line, select 14-0285 8AN ORB to M12x1.25mm Female Fitting. This can secure to the rear port and reuse the OEM fuel feed banjo bolt.
