Radium Fuel Rail, Honda S2000 (00-05) — Parts & Options

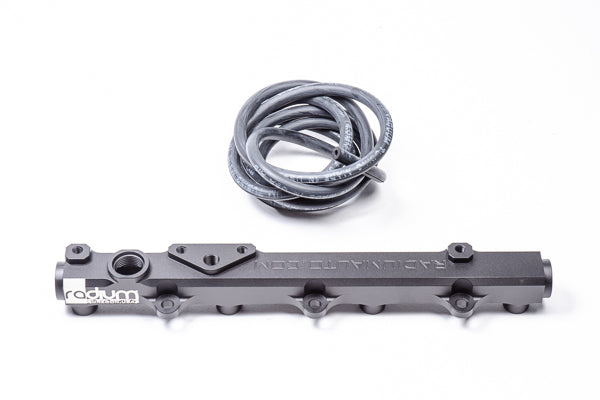

This large bore fuel rail features a large 0.69" diameter internal bore. It uses all 5 OEM mounting bosses. The fuel rail is machined, anodized, and laser etched for a high quality surface finish.

This basic setup does not include fittings. Replacement vacuum tubing is included to simplify and eliminate the OEM hard lines during installation (refer to install instructions).

PORTS AND FITTINGS

The large fuel rail ports are tapped for 8AN ORB fittings. The small OEM regulator port is also tapped for 1/8 NPT, to be used with a gauge or a plug when running an aftermarket fuel pressure regulator in a different location.

• 8AN ORB Adapter Fittings can be found HERE
• 8AN ORB Direct Mount Regulators can be found HERE
• 8AN ORB Fuel Pulse Dampers can be found HERE
• 1/8 NPT Adapter Fittings can be found HERE
• Fuel Pressure Gauge Adapters can be found HERE

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers.

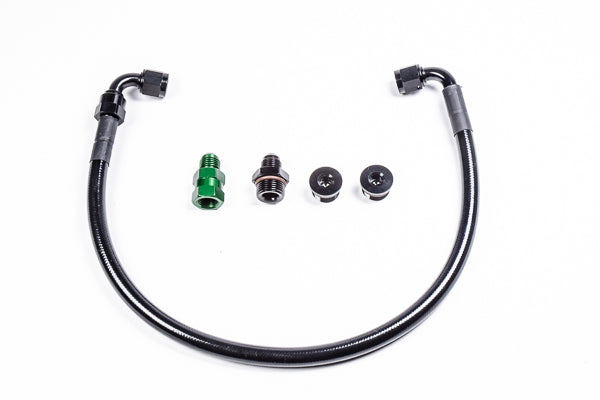

The plumbing kit permits the fuel rail to be a plug and play affair. The green 6AN male fitting secures directly to the factory inverted flare line and the 8AN ORB to 6AN male fitting secures to the upper rear fuel rail port. The 6AN PTFE line is used as the new feed line by connecting these two aforementioned fittings. The two 8AN ORB fittings plug the front and rear fuel rail ports. The OEM fuel pressure regulator connects to all of the factory lines.
