Radium Fuel Filter Mount, MK5 Supra — Parts & Options

Parts are sold separately. Select the exact part number below. Each selection adds only that part to your cart; add other required components separately. Photos and application details may show a complete system or optional accessories.

Available part numbers

• 20-0752 Fuel Filter Mount, MK5 Supra — Selection
• 20-0220-03 Fuel Filter, 10AN ORB Ports, Stainless, 10 Micron — Select Filter
• 20-0220-05 Fuel Filter, 10AN ORB Ports, Microglass, 6 Micron — Select Filter
• 20-1220-05 Fuel Filter, 10AN ORB Ports, Check Valve, Microglass, 6 Micron — Select Filter
• 20-1220-03 Fuel Filter, 10AN ORB Ports, Check Valve, Stainless, 10 Micron — Select Filter

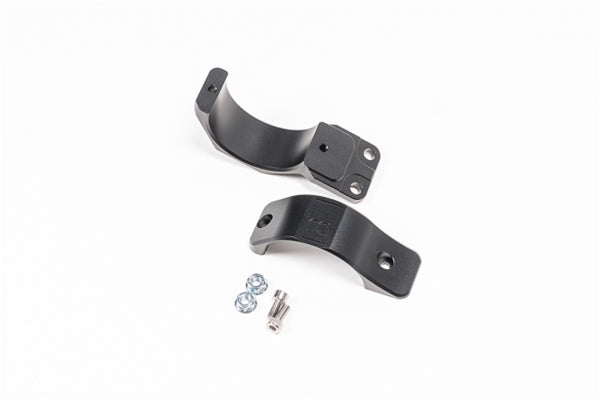

Hardware for installing a Radium Engineering fuel filter in the MK5 Supra. The upper half of the billet aluminum clamp secures to OEM threaded studs using the provided flange nuts. These studs are on the opposing side of the plastic undertray just to the left of the transmission. The lower half of the billet aluminum clamp secures the filter using stainless steel bolts.

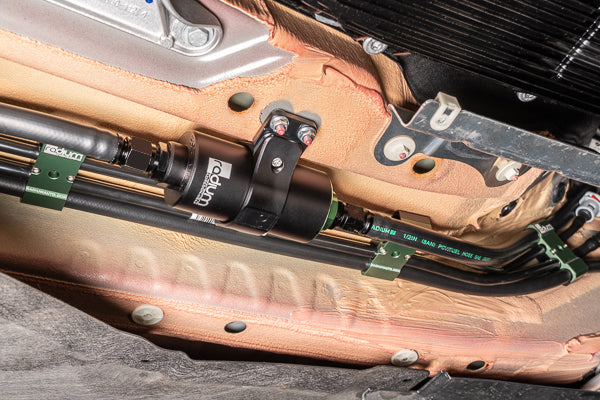

The installed photo shows the Fuel Filter and 10AN ORB Fittings (both sold separately).
