Radium Fuel Filter Kit, 89-05 Mazda MX-5 — Parts & Options

Parts are sold separately. Select the exact part number below. Each selection adds only that part to your cart; add other required components separately. Photos and application details may show a complete system or optional accessories.

Available part numbers

• 20-1021-05 Fuel Filter Kit 89-05 Mazda MX-5 Microglass 6 Micron — Fuel Filter Kit
• 20-1021-03 Fuel Filter Kit 89-05 Mazda MX-5 Stainless 10 Micron — Fuel Filter Kit
• 20-1585 Fuel Filter Mount, Nissan/Mazda — Fuel Filter Mount

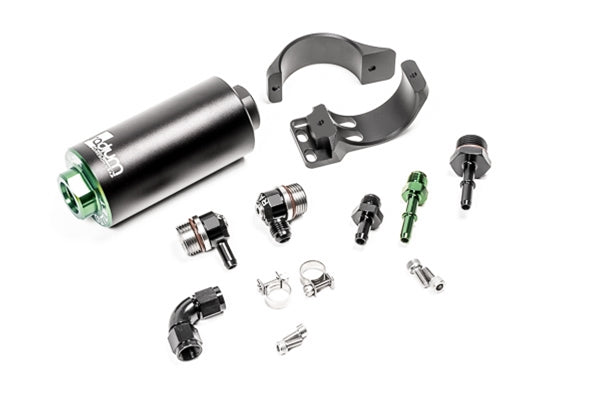

This Radium Engineering kit is an OEM fuel filter replacement. Because this filter is larger and less restrictive than the OEM Mazda filter, there is less stress put on the fuel pump. Lower pre filter pressures permit less current draw and thus lower fuel temperatures. This phenomenon permits an increase in fuel flow. NOTE: The filters can withstand alternate fuels such as methanol, ethanol, E85, etc. For more information, go HERE.

The factory Mazda fuel filter is plumbed between the fuel pump and the fuel rail. It is located just to the inside of the RH rear tire. The NA chassis uses barbed fittings and the NB chassis uses SAE quick connect fittings. Both variations are provided (2 fittings will not be used). A Mazda MX-5 NB1 install is shown below, however, the NA chassis is similar.

This is a quick install with no cutting or drilling required. Basic hand tools are all that is needed.
