Radium Fuel Delivery System, Toyota MK4 Supra — Parts & Options

Parts are sold separately. Select the exact part number below. Each selection adds only that part to your cart; add other required components separately. Photos and application details may show a complete system or optional accessories.

Available part numbers

• 14-0153 8AN ORB to 10AN Male — Required Items
• 14-0150 8AN ORB Plug — Required Items
• 20-0776 FPD-R 8AN ORB — Required Items
• 20-0029 Fuel Pressure Gauge 0-100psi — Required Items
• 20-1510 Fuel Hanger MK4 Supra Fits Walbro GSS342 or AEM 50-1200 — Choose Fuel Pump Hanger
• 20-1511 Fuel Hanger MK4 Supra Fits Ti Automotive E5LM — Choose Fuel Pump Hanger
• 20-1512 Fuel Hanger MK4 Supra Fits Walbro F90000267/274/285 — Choose Fuel Pump Hanger
• 20-0415-03 Fuel Hanger Plumbing Kit MK4 Supra Stainless Filter — Choose Fuel Hanger Plumbing Kit (Filter Type)
• 20-0415-05 Fuel Hanger Plumbing Kit MK4 Supra Microglass Filter — Choose Fuel Hanger Plumbing Kit (Filter Type)
• 20-0215 Fuel Rail Top Feed Conversion Toyota 2JZ-GTE — Choose Fuel Rail
• 20-0371 Fuel Rail Toyota 2JZ-GE — Choose Fuel Rail
• 20-1623-00 DMR Direct Mount Regulator, Black — Choose Fuel Pressure Regulator
• 20-1623-01 DMR Direct Mount Regulator, Green — Choose Fuel Pressure Regulator
• Walbro F90000274 — Choose Pump #1
• Ti Automotive BKS1001 — Choose Pump #1
• 17-0031 DIY Fuel Pump Wiring Kit — DIY Wiring Kits (1 per pump)

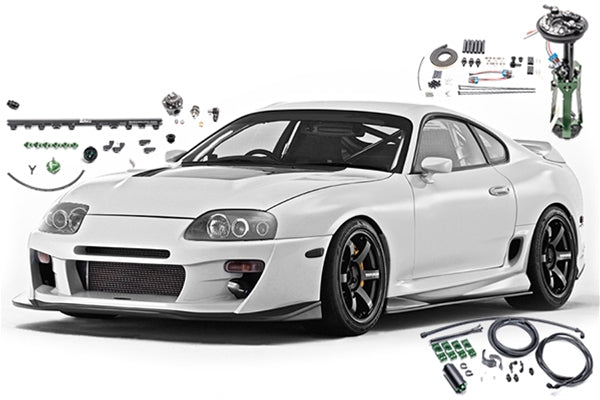

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system for the MKIV Toyota Supra. The Radium in-tank fuel pump hanger, feed and return lines, fuel rail, and pressure regulator completely replace the restrictive OEM fuel system with a setup capable of supporting well over 1,000hp and safe to use with ethanol fuels.

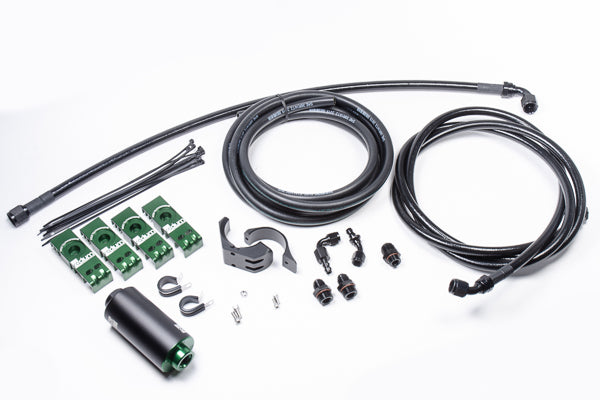

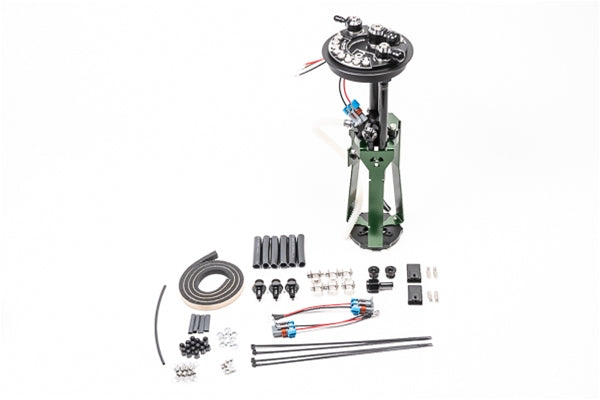

The in-tank fuel hanger replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the fuel hanger can be found HERE. The fuel lines include pre-fabricated PTFE hoses and retainers and is then sent through a high flow fuel filter. AN fittings and other required parts are provided to plumb everything to and from the fuel rail.

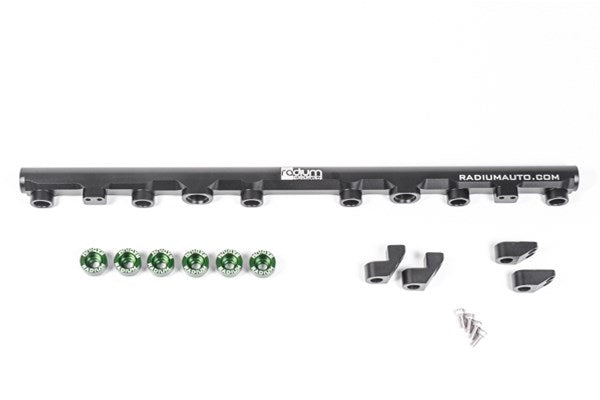

The included fuel rail, fittings, and regulator feed the 2JZ-GTE engine and converts to top feed injectors (not included). More details on the fuel rail can be found HERE.

HOW TO ORDER

• Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
• Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
• Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
• Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
• DIY fuel pump wiring kits are preselected. If you do not need all 3 wiring kits, deselect the ones you do not want.
• After all selections are made double check them for accuracy and add item to cart and proceed to checkout.
