Radium Fuel Delivery System, FR-S/BRZ/GT86/GR86 — Parts & Options

Parts are sold separately. Select the exact part number below. Each selection adds only that part to your cart; add other required components separately. Photos and application details may show a complete system or optional accessories.

Available part numbers

• 20-0111-02 Fuel Rails FR-S/BRZ/GT86/GR86 — Required Items
• 20-0111-PK Fuel Rail Plumbing Kit FR-S/BRZ/GT86/GR86 — Required Items
• 20-0352 DI ECU Mount Kit FR-S/BRZ/86 — Required Items
• 20-1073 Fuel Hanger 12-21 FR-S/BRZ/GT86 — Choose Pump Hanger
• 20-1074 Fuel Hanger 2022+ GR86/BRZ — Choose Pump Hanger
• 20-0966-05 Fuel Hanger Plumbing Kit FR-S/BRZ/GT86/GR86 Microglass Filter — Choose Plumbing Kit (Filter Type)
• 20-0966-03 Fuel Hanger Plumbing Kit FR-S/BRZ/GT86/GR86 Stainless Filter — Choose Plumbing Kit (Filter Type)
• Walbro F90000274 — Choose Pumps
• 17-0031 DIY Fuel Pump Wiring Kit — DIY Wiring Kits (1 per pump)

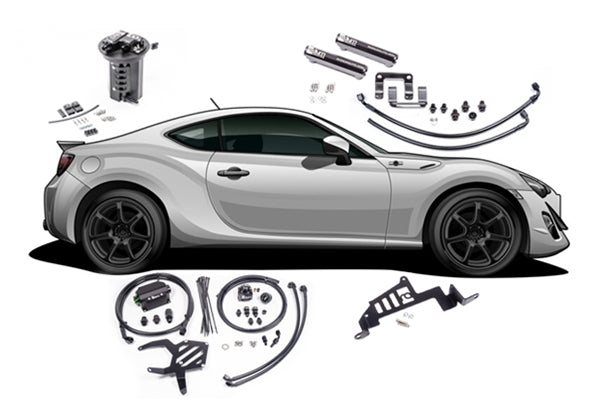

This comprehensive kit includes all the Radium Engineering components required to construct a high performance fuel delivery system.

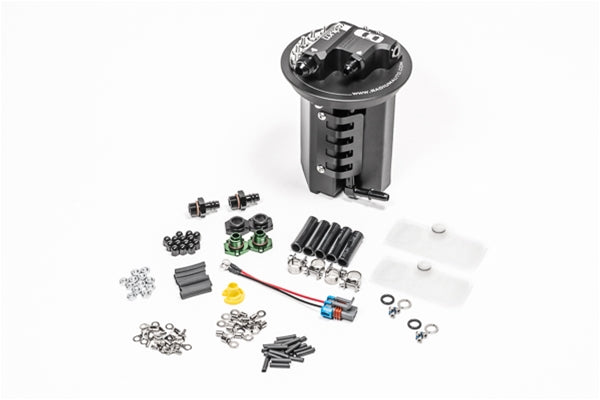

The in-tank fuel hanger surge tank replaces the factory unit and can be configured with a variety of different fuel pump options. More details on the 20-1073 and 20-1074 fuel hanger can be found HERE. NOTE: Fuel Pump(s) are required.

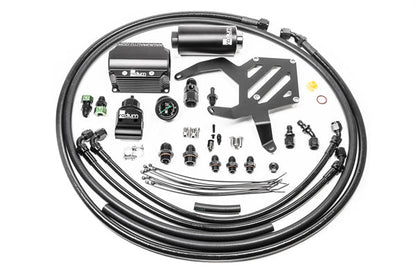

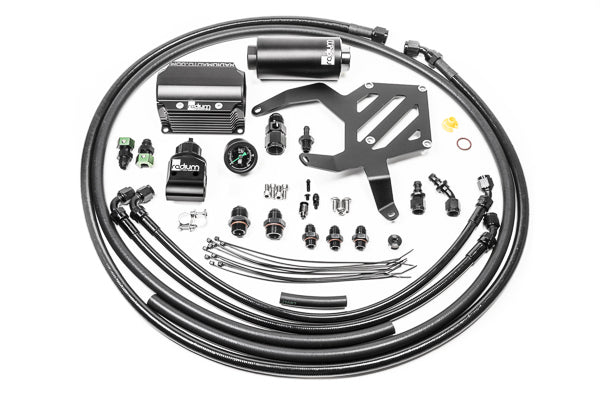

The fuel lines, a high flow fuel filter, 1:1 multi-port regulator, fuel pressure gauge, and AN fittings replace all OEM components. More details on the 20-0966-03 and 20-0966-05 fuel hanger plumbing kits can be found HERE.

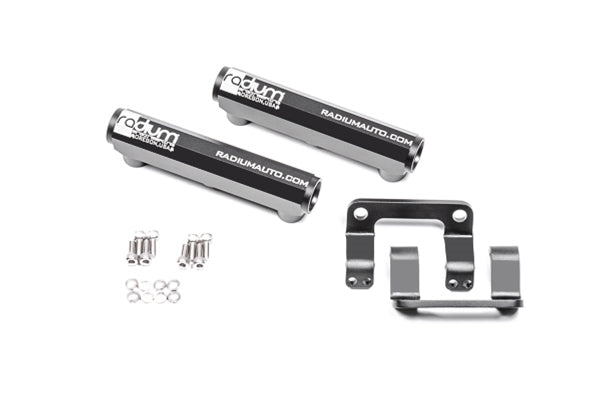

More details on the 20-0111-02 fuel rails can be found HERE. NOTE: Fuel Injectors are required.

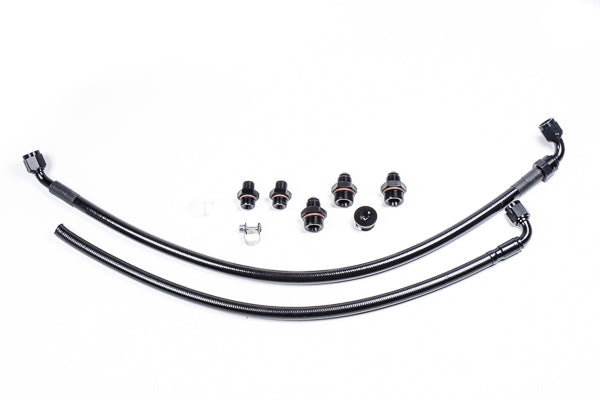

More details on the 20-0111-PK fuel rail plumbing kit can be found HERE. NOTE: The provided feed hose and clamp will simply NOT be used.

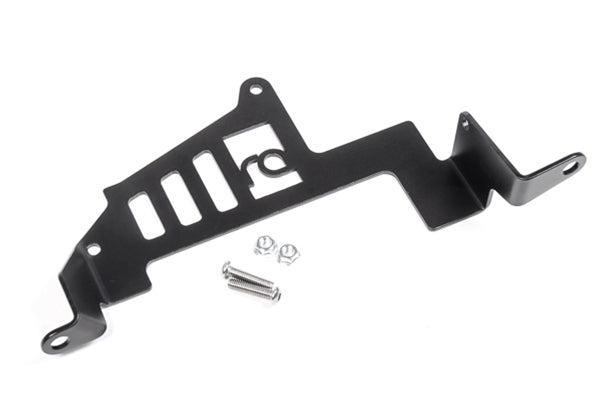

For 12-21 models, the direct injection ECU mount makes fuel rail plumbing installation simple. It prevents the need to modify the heavy gauge steel fuel rail shields. This DI ECU Mount is not compatible or even needed for 2022+ models. More details on the 20-0352 DI ECU mount can be found HERE.

HOW TO ORDER

To order this kit from a dealer or distributor, copy all of the part numbers listed to the right and use this as a parts list to order. Each part will have to be ordered individually. To order directly from Radium, follow these guidelines:

• Required items are preselected. If you already have any of the parts with check boxes next to them, you can uncheck them to remove them from the package
• Select a fuel pump hanger that matches the part number of the fuel pump(s) you wish to install into it.
• Select the fuel hanger plumbing kit by filter type. Stainless are 10 micron and Microglass are a finer 6 micron filtration. Stainless filters have elements that can be cleaned and reused.
• Choose your fuel pumps, make sure that they match the hanger selected earlier. If using a pump not available from Radium, choose none to receive no pumps. Pumps will NOT come preinstalled into the hanger: assembly is required.
• DIY fuel pump wiring kits are preselected. If you do not need both wiring kits, deselect the ones you do not want.
• After all selections are made double check them for accuracy and add item to cart and proceed to checkout.
