Radium Coolant Tank Kit, 2017+ Civic Type-R/Integra Type-S — Parts & Options

Parts are sold separately. Select the exact part number below. Each selection adds only that part to your cart; add other required components separately. Photos and application details may show a complete system or optional accessories.

Available part numbers

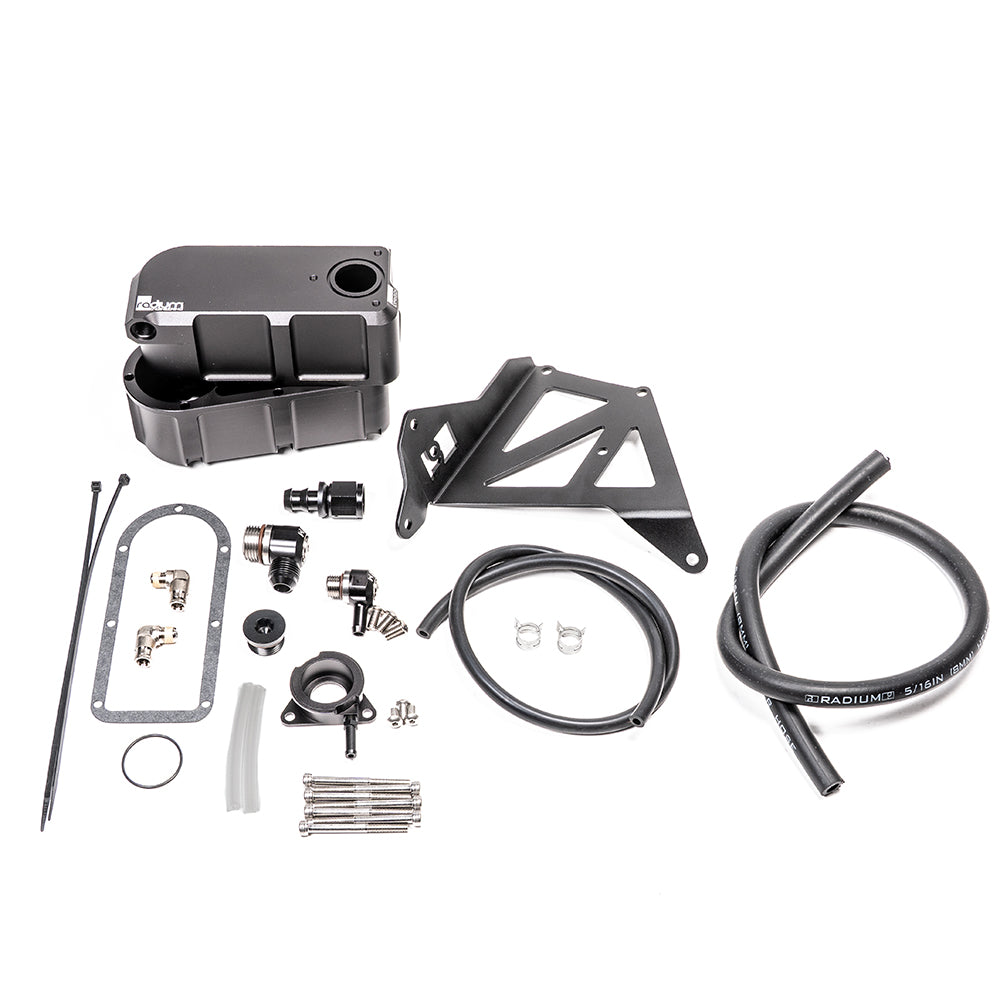

• 20-0827 Coolant Tank Kit 2017+ Civic Type-R/Integra Type-S — Selection
• 18-0076-A11 Radiator Cap Type-A 1.1Bar Black — Radium Cap
• 18-0076-A13 Radiator Cap Type-A 1.3Bar Black — Radium Cap
• 18-0076-A15 Radiator Cap Type-A 1.5Bar Black — Radium Cap

Because of continuous and intense heat cycling, plastic coolant tanks have a reputation of failing over time. Fortunately, the rugged 2-piece Radium Engineering replacement is CNC machined from aluminum and anodized for increased longevity. And because aluminum is a superior thermal conductor material, heat transfer is further improved. Additionally, the metal construction is robust enough to use in racing applications.

This coolant expansion tank directly replaces the plastic Honda tank without making permanent modifications to the vehicle. A specially designed mounting bracket secures to existing threaded holes and Radium adapter fittings interface with the factory lines. The tank functionality remains the same as the OEM cooling system.

The Radium Engineering Coolant Expansion Tank has proved itself over the years in many applications all over the world, in race and street vehicles. The internal volume of the Radium Engineering Coolant Expansion Tank is equivalent to the OEM tank resulting in no coolant loss. The internal design features two chambers with cross-over passages at the top and bottom. The coolant tank also has an internal swirl feature aiding in de-aerating the system.
