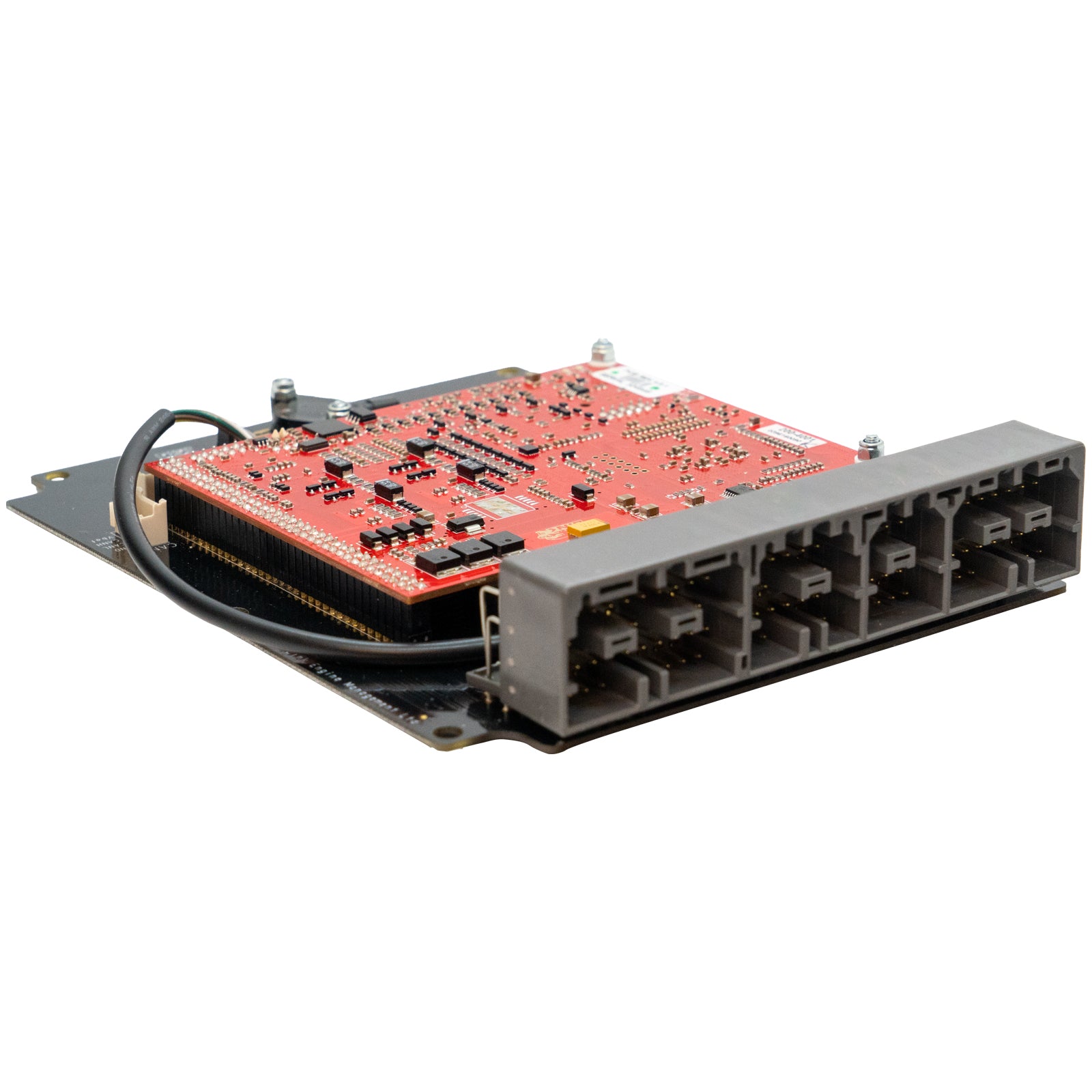

JZX90Link - JZX90X

The Link JZX90X brings programmable engine management to Toyota JZX90 Chaser, Cresta and Mark II with the non-VVT-i 1JZ-GTE engine. The JZZ30 Soarer is pin-compatible but needs a different housing arrangement.

Features

A 7-bar MAP sensor is built in; 512MB logging, boost adjustment and CAN connectivity support a tuned engine.

Fitment and installation

Manual transmissions only. Factory traction control is unavailable and its warning lamp may remain on. CAN accessories require the CANJST4 cable rather than CANPCB. Verify the factory connector and installation requirements before ordering, and have the ECU configured and tuned for your engine.

Link part number: 235-4000

View Link's specifications and installation information
