Radium Fuel Pressure Regulator — Parts & Options

$69.95

Sale Sold out

Part 20-0010-00 Fuel Pressure Regulator with 3.0Bar Bosch Top 20-0010-01 Fuel Pressure Regulator with 4.0Bar Bosch Top 20-0014 Fuel Pressure Regulator with No Top 20-0029 Fuel Pressure Gauge 0-100psi

Quantity

Parts are sold separately. Select the exact part number below. Each selection adds only that part to your cart; add other required components separately. Photos and application details may show a complete system or optional accessories.

Available part numbers

20-0010-00 Fuel Pressure Regulator with 3.0Bar Bosch Top — Select Product
20-0010-01 Fuel Pressure Regulator with 4.0Bar Bosch Top — Select Product
20-0014 Fuel Pressure Regulator with No Top — Select Product
20-0029 Fuel Pressure Gauge 0-100psi — Optional Parts

This universal Radium Fuel Pressure Regulator (FPR) is built around the common OEM Bosch regulator inserts. These Bosch units are found in many applications, including:

Audi 1.8L Turbo
Ford Falcon BA, BF, FG XR6 Turbo
Ford Territory Turbo
FPV F6 Typhoon Turbo
Porsche 911 (996) Turbo
Porsche 911 (997) Turbo
Volkswagen 1.8L Turbo

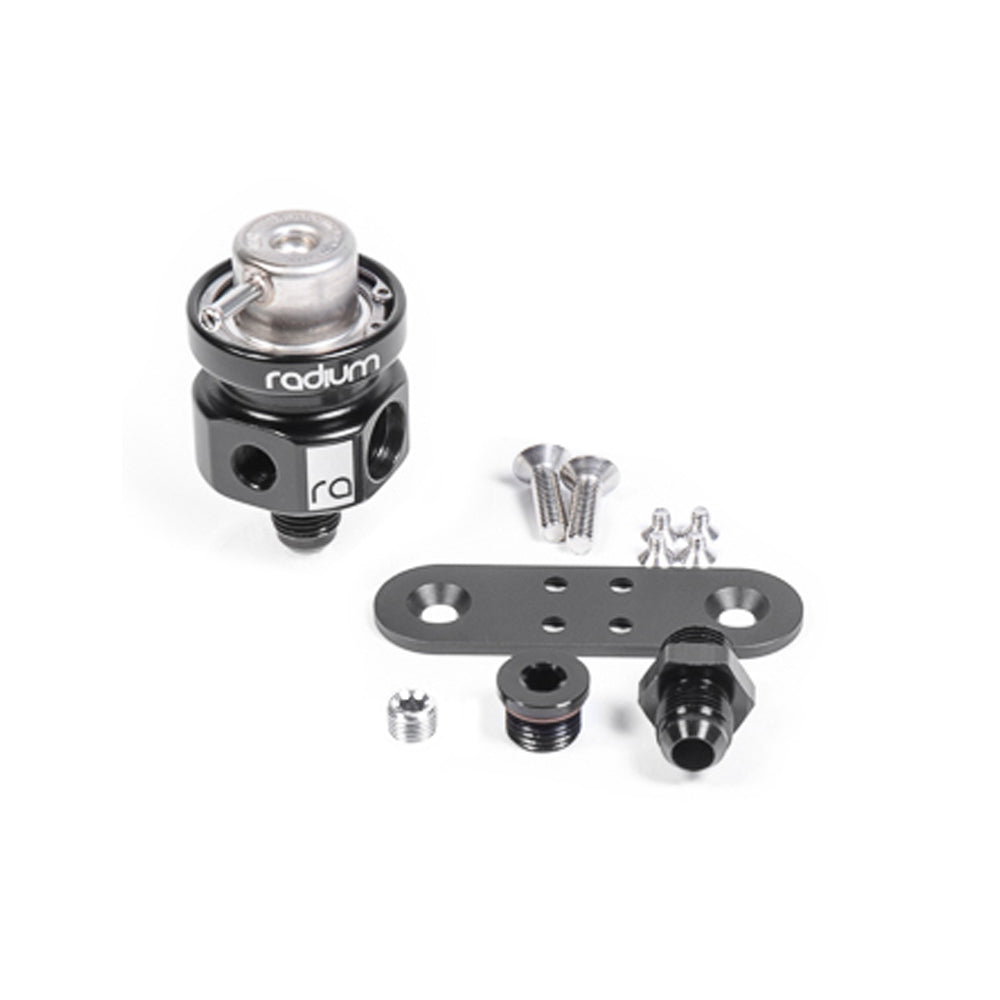

Radium also offers two versions that include a genuine Bosch regulator top in 3.0 Bar (43.5 psi) static and 4.0 Bar (58.2 psi) static. These Bosch regulator tops are vacuum referenced with a 1:1 ratio and are NOT adjustable.

The compact Radium Engineering billet aluminum FPR housing provides a convenient package for plumbing and mounting. The regulator top is secured with a stainless steel snap ring and can easily be removed using snap-ring pliers. The two main high pressure ports are threaded for 6AN ORB. The 6AN male return port is integrated into the housing. There is also a 1/8 NPT female port for a gauge, pressure transducer, etc. Each FPR housing is laser etched and anodized for a superior finish.

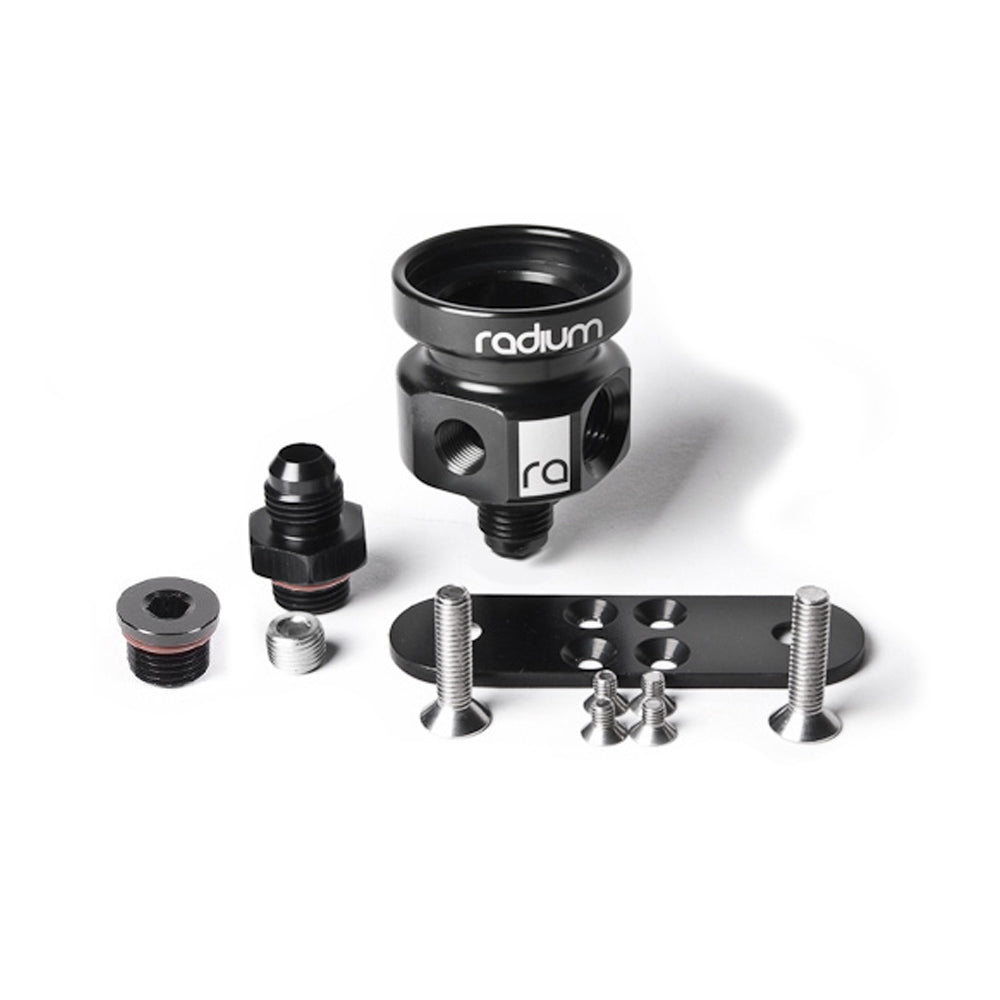

20-0014 Fuel Pressure Regulator with No Top

This unit does not include a regulator top insert and is intended for users who already have one. This option includes everything needed with the exception of the regulator top insert.
